COMPACTA PHOTOCELL
Product Details
UPC:

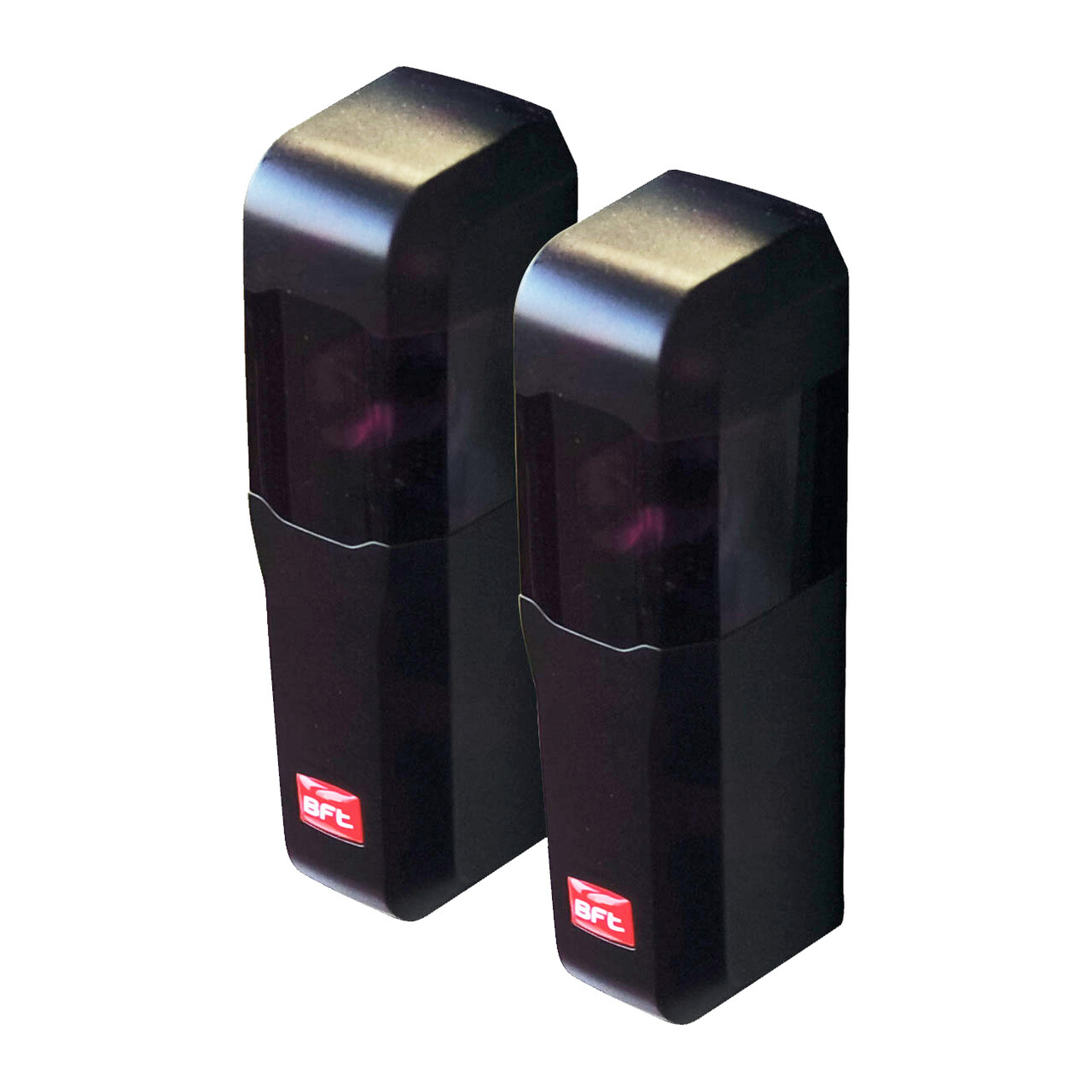

Photo cell Compacta
Brand:
BFT
The Compacta photocell is one of the smallest photocells on the market measuring just 110mm x 33mm x 33mm and has an adjustable lens offering a full 180° range, providing more flexibility with installations.
The Compacta also has a screwless cover which clicks into place for easy access and flexible cable entry with access from the back or the bottom side, which means greater protection against water ingress.
| Current demand | Transmitter: 20mA Receiver: standby 12mA / max 30mA |
| Supply voltage | 12 – 33Vac 50/60Hz 15 – 35Vdc |
| Protection rating | IP44 |
| Temperature range | -20 / +55°C |
| Range | 20m |
| Adjustment | 180° horizontal and 10° vertical |
