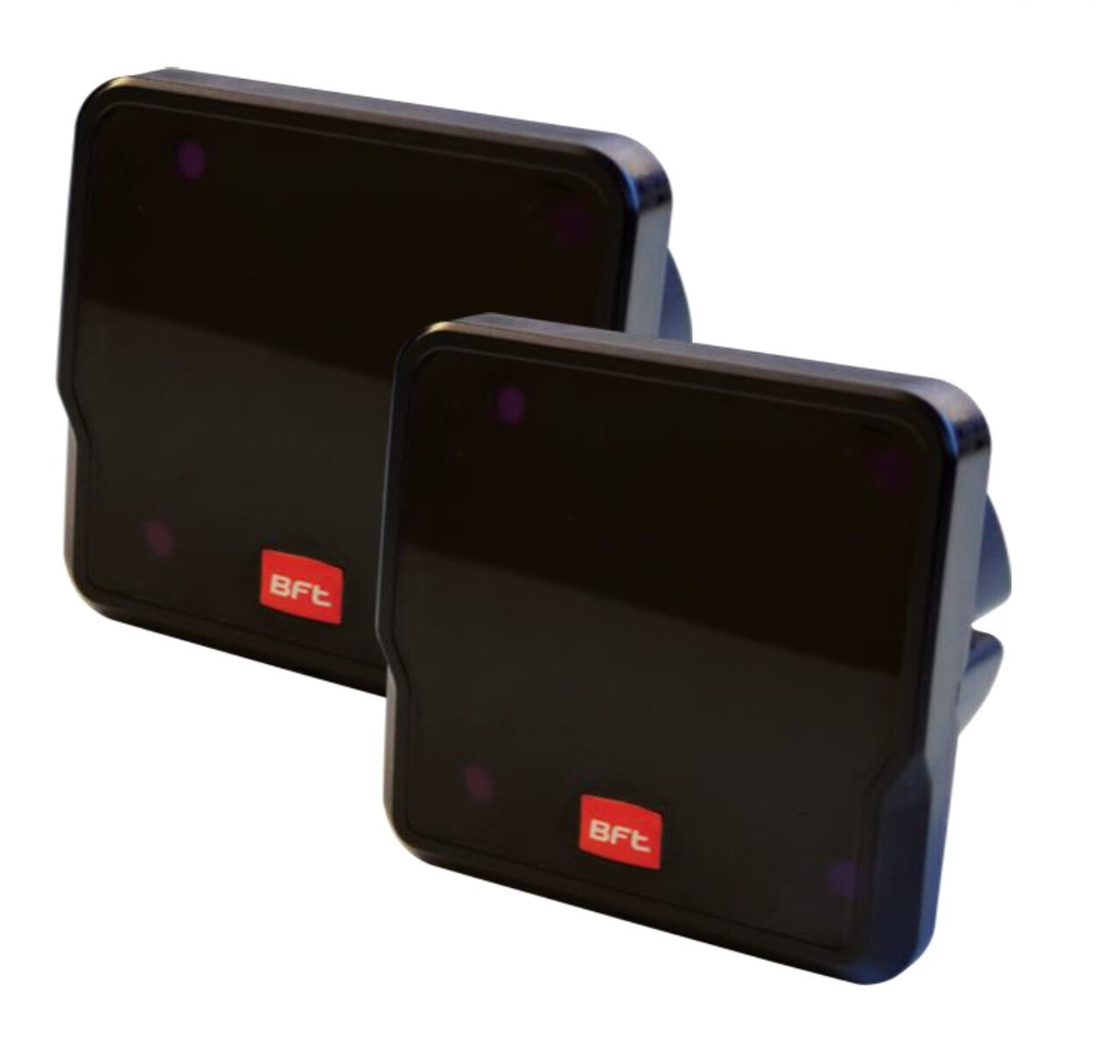

MURA is a recessed photocell which is perfect for installations that require a high degree of integration. The protrusion from the wall or pillar is reduced to the minimum. It can be powered with a wide range of voltage supplies, 12-33Vac 50/60Hz and 15-35Vdc, making it usable in a large number of installations. There is the option to adjust the angle of the optics using three screws to align the receiving and transmitting photocells.
The Mura can be connected with all BFT control boards that provide for verified management of safeties and has been designed to be compatible with the previous CELLULA 50 and FOTO-I photocells. It has a range of 30 metres.
| Supply voltage | 12 - 33Vac 15 - 35Vdc |
| Current demand | Tx = 20mA Rx = 30mA |
| Protection rating | IP44 |
| Operating temperature range | -20 / +55°C |
| Range | 30m |
