24V Electromechanical Twin Operator Kit
The Phobos BT B range consists of two motor types. The Phobos BT B25 and the Phobos BT B40 are irreversible electromechanical 24V operators suitable for swing gate leafs up to 4m long and weighing up to 700kg.
Following in the footsteps of the Phobos BT A25 & BT A40 the new BT B single kit includes the next generation of electromechanical operators. The new Phobos BT B operators are 30% faster than the original BT A range, while also running quieter than the previous model.
The Phobos BT B25 is suitable for leaf weights of up to 400kg, while the new Phobos BT B40 is also now able to support a max leaf weight of 700kg, making it a suitable choice for even larger access solutions
The management and control system of the D-Track pair ensures maximum safety for people and property, as well as making it easier to certify the system. The installation is easy and fast due to the magnetic limit switch at the top of the motor and the exclusive function that helps the installer to position it correctly using the motor’s vibration.

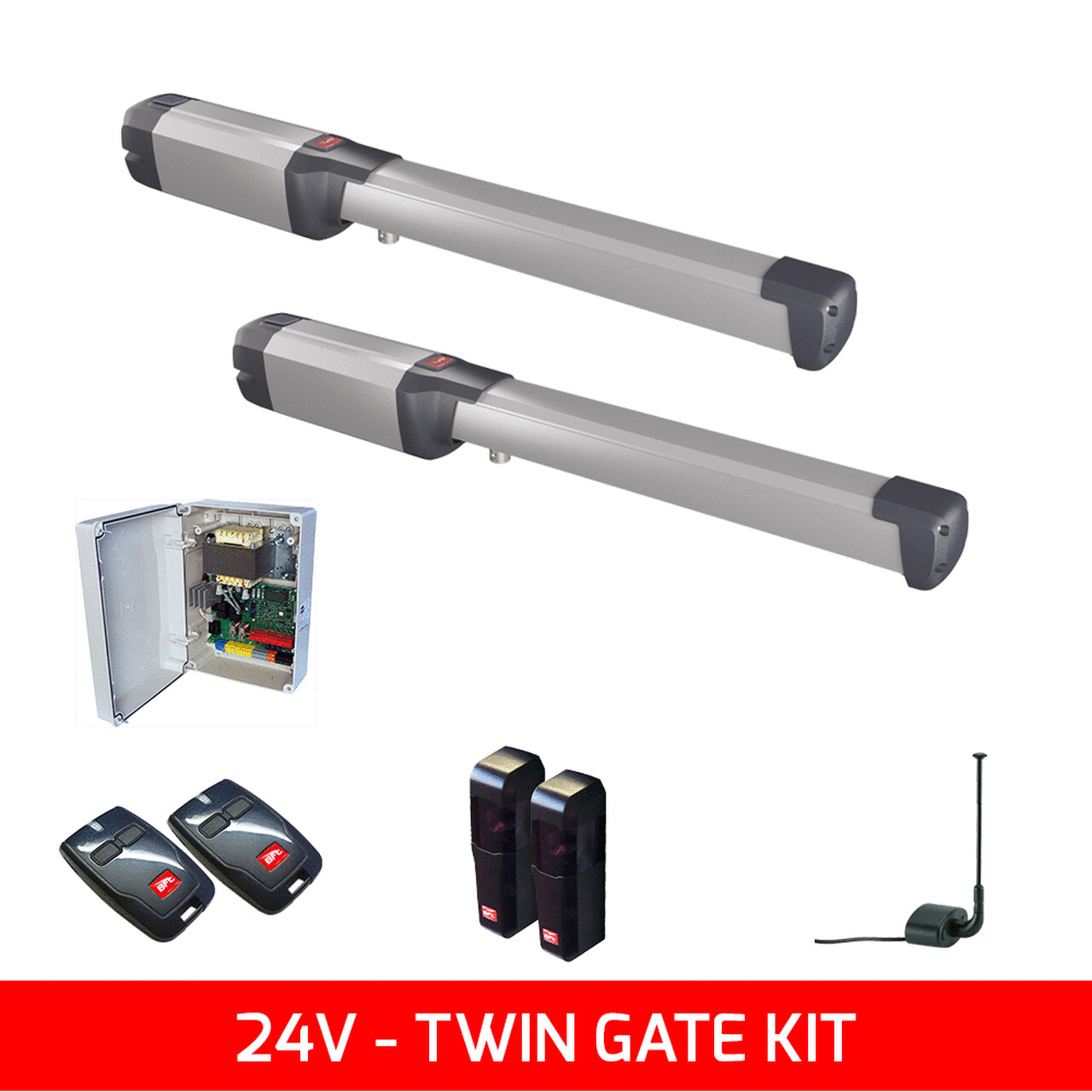

Included in the Phobos BT B twin kit:
2x Phobos BT B operators
1x Thalia A80 control panel & receiver
2x Mitto Cool radio transmitters
1x Pair of Compacta 180° photocells
1x Radio antenna
Control panel Thalia BT A80 is NOT Compatable with the QBO Touch wireless keypad.
However the QBO Touch keypad is compatible with the 230v Phobos version AC B kit
| Phobos BT B25 |
Phobos BT B40 |
|
| Power panel supply |
230v |
230v |
| Control unit |
Thalia BT A160 |
Thalia BT A160 |
| Operator Type |
Electromechanical gates |
Electromechanical gates |
| Max gate width |
2.50m |
4m |
| Max length gate panel without electric lock |
2m |
3m |
| Max gate weight |
400kg |
700kg |
| Motor voltage |
24v |
24v |
| Power consumption |
40w |
40w |
| Thrust and traction force |
2,000N |
2,000N |
| Shaft working stroke |
360mm |
470mm |
| Maximum angle |
119° |
130° |
| 90° opening time * |
approx. 13s |
approx. 16s |
| Limit swich type |
Magnetic |
Magnetic |
| Slowdown of movements |
YES |
YES |
| Impact reaction |
D-Track |
D-Track |
| Locking |
Mechanical |
Mechanical |
| Unlocking |
Bespoke key |
Bespoke key |
| Max opening cycles per hour |
30 |
30 |
| Environmental conditions |
-20 - 55°C |
-20 - 55°C |
| Protection rating |
IP44 |
IP44 |
* except deceleration, maximum gate and maximum weight.
Manual click here
Guide click here

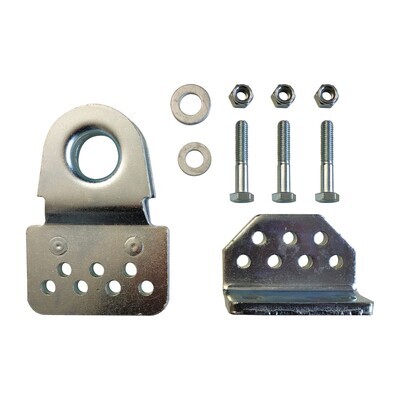

NOTE: If mounting to aluminium, wood or brick posts add the ADJUSTABLE BOLT ON POST BRACKETS
1 x bracket per motor required, if ordering a twin kit add x 2, See "you may also like below"
SKU: KITPHOBOSBT
Weight: 22.00 KGS
